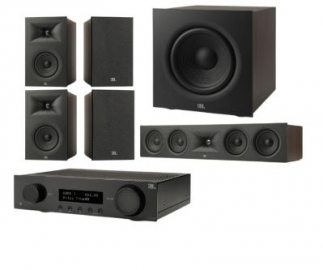

JBL compact cinema package - ma510, 250b x 4, 245c centre and 200p subwoofer
Specification
-Intuitive setup with a minimalist modern design
-High-performance immersive surround sound
-Wi-Fi and Bluetooth streaming
-On-screen setup and operation
-75 watts per channel of powerful amplification
-Next Generation JBL HDI™ Horn with Updated Geometry
-High Performance Crossover and System Design
-Anodized Aluminum Dome Tweeters
-Magnetically Attached Grilles

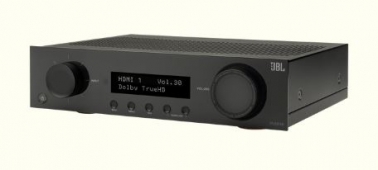

JBL MA510 5.2 channel AV Reciever in black
HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
4
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Direct
Yes
EZ Set EQ
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 – 240V, 50–60Hz
Max. power consumption
300W
Standby power consumption
<0.5W
Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
75W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
75 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight
12lb (5.4kg)
Control and Connection Specifications
HDMI Input/Output
4 / 1
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v4.1, Low Energy)
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA
Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2
Ethernet
RJ45 Gigabit, WiFi Onboard
What's in The Box?
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
JBL Stage 250B speaker pair in Black/latte
General Specifications
Type
Bookshelf Loudspeaker System
Low Frequency Driver
5.25-inch (130mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
50Hz-25kHz
Sensitivity @ 1M, 2.83V
86dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.7Khz
Enclosure Tuning
Bass Reflex via Rear-Firing Flared Tuned Port
Finish
Latte
Dimensions
Dimensions (HxWxD)
12.6in x 7.9in x 9.5in (353mm x 535mm x 438mm)
Product Weight
12.4 lbs. (5.6 kg)
Shipping Weight
30.0lbs. (13.6kg)
Shipping Units of Measure
Pair
What's in The Box?
2 x 250B
8 x Anti-Slip Pads
2 x Speaker Grilles
1 x Safety Sheet
1 x Quick-Start Guide

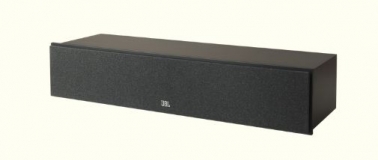

JBL 245C Centre channel loud speaker In espresso/black
General Specifications
Type
Center Channel Loudspeaker System
Low Frequency Driver
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
55Hz-25kHz
Sensitivity @ 1M, 2.83V
91dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.3kHz/2.0Khz
Enclosure Tuning
Bass Reflex via Dual Rear-Firing Tuned Ports
Finish
Latte
Dimensions
Dimensions (HxWxD)
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight
26.4lbs. (12.0kg)
Shipping Weight
32.4lbs. (14.7kg)
Shipping Units of Measure
Each
What's in The Box?
1 x 245C
6 x Anti-Slip Pads
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide

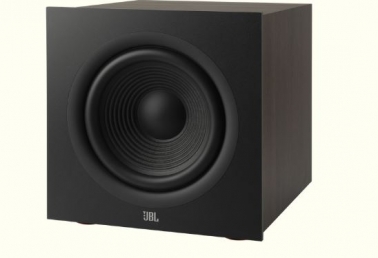

JBL Stage 200P subwoofer in black/espresso
General Specifications
Type
Powered Subwoofer
Low Frequency Driver
10-inch (250mm) Polycellulose Ribbed High Excursion
Amplifier Power
150W RMS (300W Dynamic)
Frequency Response ± 6dB
28Hz-150Hz
Crossover Frequencies
50Hz-150Hz (variable) 24dB/octave
Controls
35Hz-150Hz
Controls
Auto Power, Crossover, Level, Phase
Inputs
One (1) Line-Level LFE Input
Enclosure Tuning
Bass-Reflex via Dual Rear-Firing Tuned Ports
Power Requirements
120V, 60Hz (US) 220-230V, 50/60Hz (EU)
Power Consumption
<0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V)
Dimensions
Dimensions (HxWxD)
14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm)
Product Weight
31.8lbs. (14.4kg)
Shipping Weight
40.3lbs. (18.3kg)
Shipping Units of Measure
Each
What's in The Box?
1 x 200P
1 x Power Cord
4 x Floor Spikes
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide
