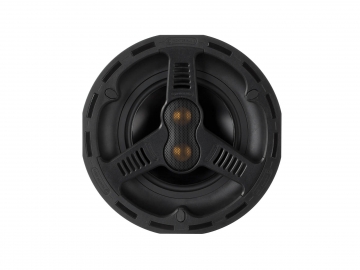

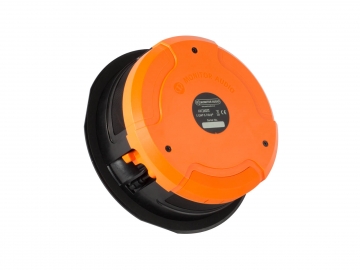

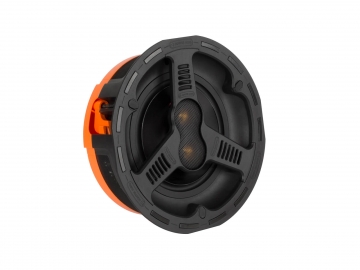

Monitor Audio, AWC265-T2, All Weather

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.

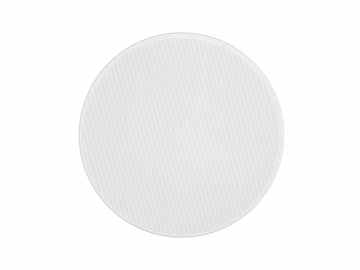

Optional square grille can be used with this model.

Technology
High Performance C-CAM bass and high frequency drivers
Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation


Frequency Response
60 Hz — 30 kHz

Sensitivity (1W@1M)
88 dB (both channels driven)

Nominal Impedance
8 + 8 ohms

Maximum SPL
105.8 dBA

Power Handling (RMS)
60 W

Recommended Amplifier Requirements
20 — 60 W

Drivers
6.5" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Connection
2 x (2 pairs) Gold plated push style terminal

Overall Diameter (Including Grille)
251.71 mm (915/16")

Overall Depth (Including Grille)
93.5 mm (31/2")

Cut-Out Hole Diameter
211 mm (81/4")

Mounting Depth
88.5 mm (31/2")

Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")

Fixing Type
3 position Tri-Grip dog leg fixings

Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille
SS430 Stainless Steel

Magnets
Samarium Cobalt

Operating Temperature Range
-34° to 79° C -29° to 174° F

Weight
2.04 kg (4 lb 8 oz)

Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)

Back Box
CCBOX-R | CMBOX-R
