JBL Dolby atmos cinema package
Specification
-Intuitive setup with a minimalist modern design
-High-performance immersive surround sound
-Wi-Fi & Bluetooth streaming
-On-screen setup and operation
-110 watts per channel of powerful amplification
-Next Generation JBL HDI™ Horn with Updated Geometry
-High Performance Crossover and System Design
-Anodized Aluminum Dome Tweeters
-Magnetically Attached Grilles

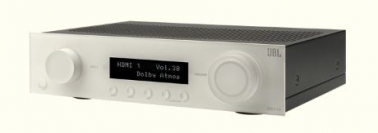

JBL MA710 7.2 channel receiver in white
General Specifications
HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
3
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Analog
Yes
EZ Set EQ
Yes
Front channel bi-amp
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 – 240V, 50–60Hz
Max. power consumption
500W
Standby power consumption
<0.5W
Audio Specifications
Channels
7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
110W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
110 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
160 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight
13.8lb (6.3kg)
Control and Connection Specifications
HDMI Input/Output
6/ 1
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA)
Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet
RJ45 Gigabit, WiFi Onboard
What's in The Box?
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet

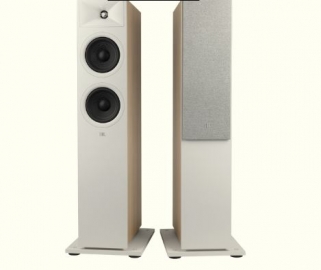

JBL 260F floorstanding speakers in white/latte
General Specifications
Type
Floorstanding Loudspeaker System
Low Frequency Driver
Dual 6.5-inch (165mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-225W
Frequency Response ± 6dB
40Hz-25kHz
Sensitivity @ 1M, 2.83V
90dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.3kHz/1.7Khz
Enclosure Tuning
Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
Finish
Latte
Dimensions
Dimensions (HxWxD)
40.8in x 12.2in x 14.3in (1036mm x 310mm x 362mm)
Dimensions (HxWxD) without Base
43.8in x 9.5in x 16.1in (1113mm x 241mm x 409mm)
Product Weight
43.0 lbs. (19.5 kg)
Shipping Weight
53.1 lbs. (24.1kg)
Shipping Units of Measure
Each
What's in The Box?
1 x 260F
1 x Plinth
4 x Mounting Screws
4 x Floor Spikes
1 x Tool
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide

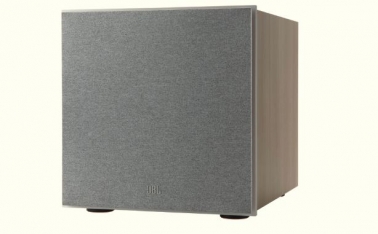

JBL Stage 220P subwoofer in white/latte
General Specifications
Type
Powered Subwoofer
Low Frequency Driver
12-inch (300mm) Polycellulose Ribbed High Excursion
Amplifier Power
250W RMS (500W Dynamic)
Frequency Response ± 6dB
26Hz-150Hz
Crossover Frequencies
50Hz-150Hz (variable) 24dB/octave
Controls
35Hz-150Hz
Controls
Auto Power, Crossover, Level, Phase
Inputs
One (1) Line-Level LFE Input
Enclosure Tuning
Bass-Reflex via Dual Rear-Firing Tuned Ports
Power Requirements
120V, 60Hz (US) 220-230V, 50/60Hz (EU)
Power Consumption
<0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V)
Dimensions
Dimensions (HxWxD)
16.4in x 15.9in x 17.5in (416mm x 405mm x 444mm)
Product Weight
41.2lbs. (18.7kg)
Shipping Weight
51.4lbs. (23.3kg)
Shipping Units of Measure
Each
What's in The Box?
1 x 220P
1 x Power Cord
4 x Floor Spikes
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide
JBl Stage 240H Speaker Pair in Latte/white
General Specifications
Type
Dolby Atmos® Surround Sound Loudspeaker System
Low Frequency Driver
4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
85Hz-25kHz
Sensitivity @ 1M, 2.83V
87dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.6kHz
Enclosure Tuning
Sealed
Finish
Latte
Dimensions
Dimensions (HxWxD)
6.9in x 7.1in x 10.6in (176mm x 180mm x 270mm)
Product Weight
10.1lbs. (4.6 kg)
Shipping Weight
22.9lbs. (10.4kg)
Shipping Units of Measure
Pair
What's in The Box?
1 x 240H
1 x Anti-Slip Pad
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide

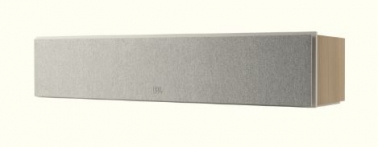

JBL 245C Centre channel loud speaker In white/latte
General Specifications
Type
Center Channel Loudspeaker System
Low Frequency Driver
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
55Hz-25kHz
Sensitivity @ 1M, 2.83V
91dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.3kHz/2.0Khz
Enclosure Tuning
Bass Reflex via Dual Rear-Firing Tuned Ports
Finish
Latte
Dimensions
Dimensions (HxWxD)
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight
26.4lbs. (12.0kg)
Shipping Weight
32.4lbs. (14.7kg)
Shipping Units of Measure
Each
What's in The Box?
1 x 245C
6 x Anti-Slip Pads
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide
JBL Stage 240B Speaker pair in white
General Specifications
Type
Bookshelf Loudspeaker System
Low Frequency Driver
4.5-inch (114mm) Polycellulose Ribbed
Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-125W
Frequency Response ± 6dB
53Hz-25kHz
Sensitivity @ 1M, 2.83V
85dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.4Khz
Enclosure Tuning
Bass Reflex via Rear-Firing Tuned Port
Finish
Espresso or Latte
Dimensions
Dimensions (HxWxD)
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight
10.1lbs. (4.6 kg)
Shipping Weight
22.9lbs. (10.4kg)
Shipping Units of Measure
Pair
What's in The Box?
2 x 240B
8 x Anti-Slip Pads
2 x Wall Brackets
2 x Foam Plugs
8 x Mounting Screws
2 x Speaker Grilles
1 x Safety Sheet
1 x Quick-Start Guide
