Frequency Response
60 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB (both channels driven)
Nominal Impedance
8 + 8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 — 60 W
Drivers
6.5" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Connection
2 x (2 pairs) Gold plated push style terminal
Overall Diameter (Including Grille)
251.71 mm (915/16")
Overall Depth (Including Grille)
93.5 mm (31/2")
Cut-Out Hole Diameter
211 mm (81/4")
Mounting Depth
88.5 mm (31/2")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

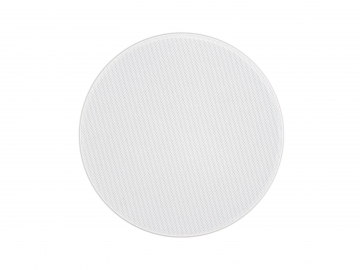

Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket
CM-B
Back Box
CSM-BOX
Sold As
Single Unit
