Overview

• Number of Channels

5.1.2

• Set Weight

15.3 kg

• Packaged Dimension (WxHxD)

1182.0 x 404.0 x 291.0 mm

• Operating Power Consumption (Main)

39 W

• Stand-by Power Consumption (Main)

0.5 W

General Feature

• Number of Channels

5.1.2

• Number of Speaker

11

• Color

Black

Speaker

• Center Speaker

Yes

• Up-firing Speaker

Yes

• Front Wide-firing Speaker

No

• Side-firing Speaker

Yes

• Wireless Subwoofer Included

Yes

• Wireless Rear Speaker Included

No

Audio Feature

• Dolby

ATMOS Music,ATMOS,Dolby 5.1ch,Dolby Digital Plus,Dolby True HD

• Voice Enhance Mode

Yes

• SpaceFit Sound Pro

Yes

• Active Voice Amplifier Pro

Yes

• Night Mode

Yes

• Sound Modes

Surround Sound Expansion, Game Pro, Adaptive Sound, Standard

• LPCM

Multi channel

• Moderate Bass

Yes

Video Feature

• 4K Video Pass

60Hz

• HDR

HDR 10+

Decoding Format

• Decoding Format

MP3,AAC,OGG,FLAC,WAV,ALAC,AIFF

Connectivity

• HDMI In

1

• HDMI Out

1

• HDMI ARC

Yes(eARC)

• HDMI CEC

Yes

• Optical In

1

• Bluetooth

Yes

• Wi-Fi

Yes

• USB Music Playback

No

• One Control

Yes

• Bluetooth Version

5.3

Special Feature

• SmartThings App

Yes

• Q-Symphony

Yes

• Multi Position Rear Speaker

No

• Tap Sound

Yes

• Chromecast

Yes

• Spotify Connect

Yes

• AirPlay

Yes

• Wireless Dolby ATMOS

Yes

• Roon Service

Roon Ready

• Tidal Connect

Yes

Voice Feature

• Works with Google

Yes

• Bixby

No

• Alexa

Yes

Dimension

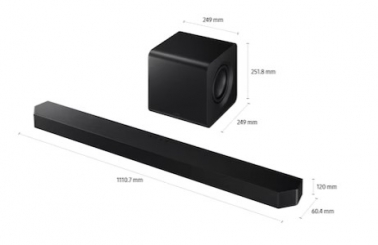

• Net Dimension (Main Speaker) (WxHxD)

1110.7 x 60.4 x 120.0 mm

• Net Dimension (Sub Woofer) (WxHxD)

249.0 x 251.8 x 249.0 mm

• Packaged Dimension (WxHxD)

1182.0 x 404.0 x 291.0 mm

Weight

• Net Weight (Main Speaker)

5.1 kg

• Net Weight (Sub Woofer)

7.2 kg

• Set Weight

15.3 kg

Power

• Stand-by Power Consumption (Main)

0.5 W

• Stand-by Power Consumption (Subwoofer)

0.5 W

• Operating Power Consumption (Main)

39 W

• Operating Power Consumption (Subwoofer)

26 W

• Free Voltage

Yes

Accessory

• Remote Controller

Yes

• Wall Mount Bracket

Yes

Software Support

• Security Update Period (At least 5 years from launch of product)

31 DECEMBER 2030
