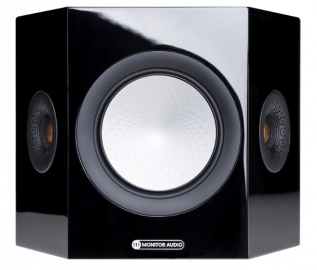

Product type: Surround / effects speaker (on-wall)
System format: 2-way, dipole / bipole switchable
Frequency response: 81 Hz – 35 kHz (in-room, -6 dB)
Sensitivity: 87.5 dB (2.83V @ 1m)
Nominal impedance: 8 ohms
Minimum impedance: 4.1 ohms @ 240 Hz
Maximum SPL: 104 dB (single, free-field)
Power handling (RMS): 85 W
Recommended amplifier power: 30 – 85 W

Drive units:
1 x 6" (152 mm) C-CAM RST II mid-bass driver
2 x 1" (25 mm) C-CAM gold dome tweeters with UD Waveguide II

Crossover frequency: 2 kHz

Port tuning frequency: N/A

Cabinet type: Sealed (acoustic suspension)
Enclosure material: MDF with internal bracing

Dimensions (H x W x D): approx. 250 x 312 x 147 mm
Weight: approx. 4.5 kg (each)

Mounting options: Wall-mount (integrated keyhole fixings)

Design features:
Switchable dipole/bipole operation for different surround presentation styles
Angled baffle design for wider sound dispersion
Dual tweeter layout for diffuse, room-filling surround effects
RST II (Rigid Surface Technology) mid-bass driver for reduced distortion
C-CAM (Ceramic-Coated Aluminium/Magnesium) driver technology
Gold dome tweeters with UD Waveguide II for controlled dispersion
Sealed cabinet for easy wall placement and tighter bass response

Use case:
Designed as dedicated surround/effects speakers in a home cinema system; ideal for side or rear channels where wide dispersion and immersive, non-localised sound are required—particularly effective in dipole mode for diffuse surround fields or bipole mode for more direct energy.
