Monitor Audio, Radius 380, Radius Series

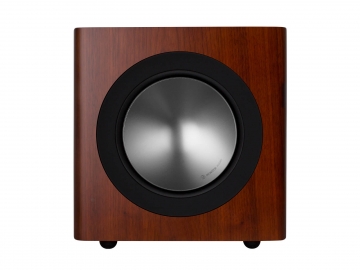

The Radius 380’s twin side-firing 8" C-CAM drivers - one active and one passive ABR - work in tandem with a powerful 140 W cool-running Class D amplifier (double the power of its predecessor). The drivers have no grilles but are colour-coded to coordinate with cabinet finish. A 12 V trigger syncs the 380 with other AV components when the system is activated.

Technology
18 mm MDF cabinet construction with internal bracing
Cool-running 140 W Class D amplifier with switch mode power supply (SMPSU)
Twin side-firing 8" C-CAM drivers - one active and one passive ABR
Low pass filter switch – for LFE or Stereo input selection
Power switch with ON – Auto- Off/ trigger settings
Stereo/ LFE RCA inputs
3 x Pre-set EQ settings – Music/Movie/Impact

System Format
Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet

Lower Frequency Limit
30 Hz (- 6 dB)

Upper Frequency Limit
Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Output
140 W @ 1% THD+N

Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 & 180 degrees

Auto Sensing
Line Level >3.5mV

Input Level Requirements
Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement
1 x 8” (200 mm) C-CAM long throw driver 1 x 8” (200 mm) ABR

Input Impedance
> 20 ohms

Mains Input Voltage
AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))
308 x 290 x 305 mm (121/8 x 117/16 x 12")

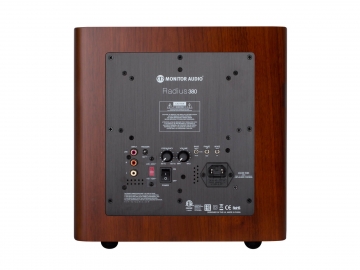

Connection
Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)

Trigger Input
5 - 12v via 3.5 mm mono mini-jack socket

Power Consumption
200 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)
10.16 kg (22 lb 6 oz)

Sold As
Single Unit
