Frequency Response
75 Hz — 30 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
8 ohms
Maximum SPL
106.8 dBa
Power Handling (RMS)
80 W
Recommended Amplifier Requirements
10 — 80 W
Drivers
1 x 140 mm (5 1/2") C-CAM bass/ mid-range driver
1 x 25 mm (1") C-CAM Gold Dome tweeter

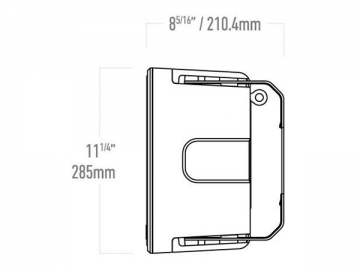

External Dimensions (H x W x D)
285 mm x 172.5 mm x 158.5 mm (111/4" x 613/16" x 61/4")
Overall Depth (Including Bracket)
210 mm (81/4")
Total Bracket Pivot Angle
87.5 degrees (from central position)

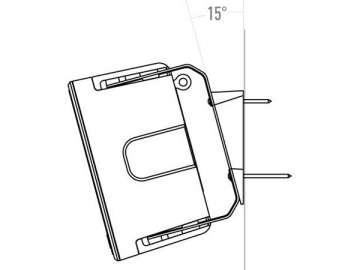

Fixed Angled Block (Portrait)
15 degrees
Connection
Gold plated 'push' type terminals
Environmental Protection Rating
IP55
Colour / Finish
White/Black
Weight (packaged)
3.66 kg (8 lb)
Sold As
Pair
