THX Certification

THX® Certified Ultra (with 2 x Cinergy Sub15’s)

System Format

N/A

Sensitivity (2.83 Vrms @ 1 M)

86 dB @ 100 Hz

Maximum Linear SPL**** (@1m, free space)

Continuous 109 dB, Peak 120 dB

Power Handling (RMS)

Continuous 600 W, Peak* 1500 W (Band limited***)

Nominal Impedance

4 Ohms

Minimum Impedance (20 Hz - 20 kHz)

4 Ohms

Recommended Low Frequency Crossover Frequency

40 - 100 Hz (Low Pass)

Recommended Amp Requirements (RMS)

Must be used with IA750-2 / IA750-4 running C Sub Profile

Bass Alignment

Sealed

Port Tuning Frequency

N/A

LF Extension, In Wall, With Port Bungs (- 6dB)

N/A

LF Extension, In Free Space, No Port Bungs (- 6dB)

17 Hz (IA750-2 / IA750-4)

HF Extension (-6dB)

N/A

Drive Unit Complement

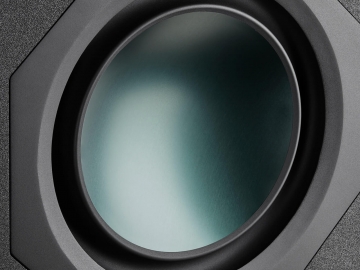

1x 15" Ultra high Excursion C-CAM Driver

External Dimensions (Cabinet Only (H x W x D))

540 x 540 x 280 mm (211/4 x 211/4 x 11")

External Dimensions (Inc Grille) (H x W x D)

N/A

Max External Dimensions (Inc all Fittings) (H x W x D)

567 x 540 x 280 mm (225/16 x 211/4 x 11")

Weight

38.5 kg (84 lb 12 oz)

Conditions

* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

THX

THX® Certified Loudspeakers.

THX® and the THX® Logo are the property of THX® Ltd., registered in the U.S. and other countries.

Warranty

Lifetime
