THX Certification

THX® Certified Ultra

System Format

3 Way

Sensitivity (2.83 Vrms @ 1 M)

89 dB

Maximum Linear SPL**** (@1m, free space)

Continuous 103 dB, Peak 116 dB

Power Handling (RMS)

Continuous 200 W, Peak* 800 W

Nominal Impedance

4 Ohms

Minimum Impedance (20 Hz - 20 kHz)

3.8 Ohms

Recommended Low Frequency Crossover Frequency

80 - 100 Hz (High Pass)

Recommended Amp Requirements (RMS)

100 - 800 W (IA750-2 or IA750-4)

Bass Alignment

Ported**

Port Tuning Frequency

67 Hz**

LF Extension, In Wall, With Port Bungs (- 6dB)

48 Hz

LF Extension, In Free Space, No Port Bungs (- 6dB)

65 Hz

HF Extension (-6dB)

>30 kHz

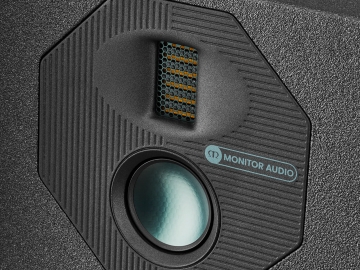

Drive Unit Complement

1 x 8" RDT Driver
1 x 2.5" C-CAM Driver
1 x MPD Transducer

External Dimensions (Cabinet Only (H x W x D))

460 x 350 x 160 mm (181/8 x 133/4 x 65/16")

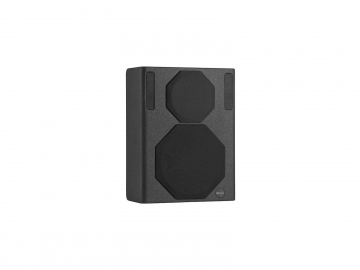

External Dimensions (Inc Grille) (H x W x D)

460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8")

Weight

18.4 kg (40 lb 8 oz)

Conditions

* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

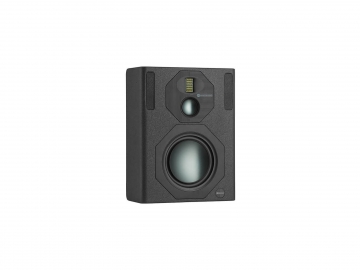

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

THX

THX® Certified Loudspeakers.

THX® and the THX® Logo are the property of THX® Ltd., registered in the U.S. and other countries.
