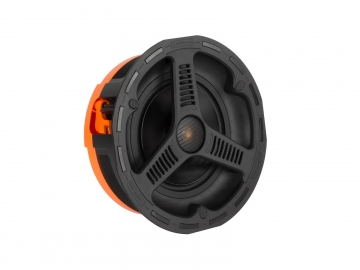

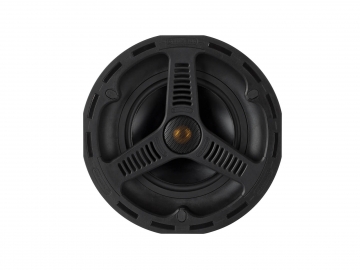

Monitor Audio, AWC265, All Weather Speaker

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.

Technology
Quick and easy installation
High Performance C-CAM bass and high frequency drivers

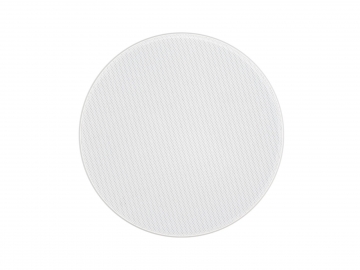

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation


Frequency Response
60 Hz — 30 kHz

Sensitivity (1W@1M)
88 dB

Nominal Impedance
8 ohms

Maximum SPL
105.8 dBA

Power Handling (RMS)
60 W

Recommended Amplifier Requirements
20 — 60 W

Drivers
6.5" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)

Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Adjustment Controls
2 x (1 pair) Gold plated push style terminal

Overall Diameter (Including Grille)
251.71 mm (915/16")

Overall Depth (Including Grille)
93.5 mm (31/2")

Cut-Out Hole Diameter
211 mm (81/4")

Mounting Depth
88.5 mm (31/2")

Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")

Fixing Type
3 position Tri-Grip dog leg fixings

Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille
SS430 Stainless Steel

Magnets
Samarium Cobalt

Operating Temperature Range
-34° to 79° C -29° to 174° F

Weight
2.04 kg (4 lb 8 oz)

Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)

Back Box
CCBOX-R | CMBOX-R
