System Format
Active – Sealed Cabinet
Drive Unit Complement
1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @17Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 500 W*
Continuous short-term: 425 W**
Amplifier Output Power, 120Vac
Instantaneous: 450 W
Continuous short-term: 390 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
321 x 321 x 321 mm
Power Consumption
120 W
Cabinet Construction
Braced 18 mm thick MDF with 36 mm front baffle
Grille

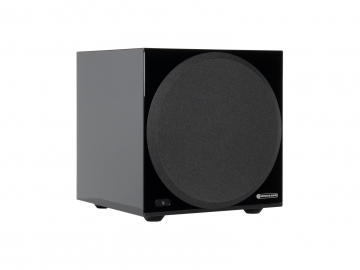

Cloth covered magnetically attached Grilles
Weight
20.06 kg (44 lb 1 oz)
* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
Warranty
5 years
Key Features
- 1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
- 1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
- 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup

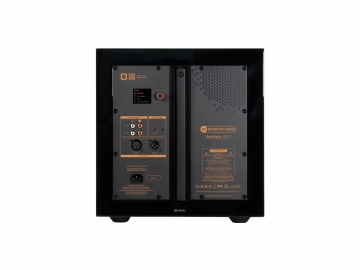

- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allows daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allows daisy chain of up to four Anthra subwoofers
- Available in Gloss Black and Satin White finishes
- MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.
