JVC JVC-DLA-NZ900

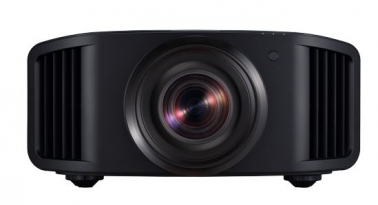

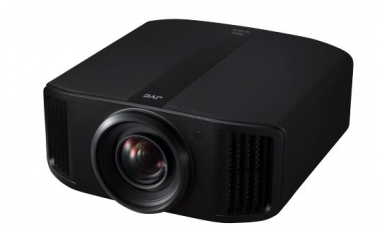

JVC D-ILA Projector DLA-NZ900 in Black

Specification

Device

D-ILA Technology Yes

Chip Type 3rd Generation 0.69-inch 4K D-ILA device

Native Resolution 4096 x 2160

Number Of Chips 3

8K/e-shiftX Yes

Display Resolution 8192 x 4320

Light Source

Laser [1] Yes

Type New BLU-Escent Laser Diode

Life Time (Standard Mode) 20000 hours


Brightness 3300 lm

Dynamic Contrast ∞ : 1

Native Contrast 150000 : 1

Dynamic Light Power control Yes

Modes Mode 1 (gentle), Mode 2 (strong), Off

Manual Aperture Yes

Range -15 (stops down) to 0 (opens up)

DCI-P3 Color Gamut Yes

100% REC 709 Yes

Color Bit Depth 12 bit

ISFccc Certification [2] Yes

HDR

HDR10 Yes

HDR10+ [3] Yes

Frame Adapt HDR [4] Yes

Theater Optimizer [5] Yes

HLG Yes

Auto Tone Mapping Yes

Mastering Info Display Yes

Info data MaxCLL and MaxFALL mastering data

HDR Picture Modes BT.709 / BT.2020 / DCI / HDR

Deep Black Tone Control Yes

Lens

Zoom 2 x

Throw Ratio 1.35-2.75:1

Diameter 100 mm

Material All-glass

Build 18-element, 16-group in full aluminium lens barrel.

Lens Shift Yes

Range Horizontal ± 43 %

Range Vertical ± 100 %

Motorized Zoom Yes

Motorized Shift Yes

Motorized Focus Yes

Projection Display size (diagonal) 60 - 300 inch

Memory Function Yes

Number of user presets 10

Lens Cover Yes

HDMI

HDMI [6] Yes

Number of Inputs 2

Data Rate 48 Gbps

HDCP Version 2.3

8K60P signal input Yes

4K120p signal input Yes

4K60P signal input Yes

Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24

PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)

Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)

Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB

EDID Modes A and B (older hardware may need to use B settings)

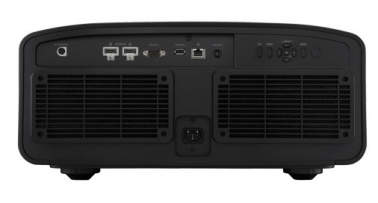

Connections

Trigger out Yes

Connector Mini-Jack (3,5mm)

Power DC 12V / 100mA

3D Synchro Yes

Connector Mini DIN 3-pin

LAN Yes

Connector RJ45

RS-232 Yes

Connector D-sub 9-pin

Service Yes

Connector USB (Type A) for firmware update or backup

3D Capability Yes

3D Versions Frame Packing, Side-by-Side, Top & Bottom

Frame Packing Resolutions 720p 60/50, 1080p 24

Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50

Top & Bottom Resolution 720p 60/50, 1080p/24

3D Emitter (Optional) Yes, PK-EM2

3D Glasses (Optional) Yes, PK-AG3

Picture Settings

Picture Modes Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes

Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2

Gamma Processing Depth 12 bit

Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes

Color Management 6-Axis adjustable CMS

MPC Yes

Filmmaker Mode [7] Yes

Low Latency Mode Yes

Clear Motion Drive Yes

Motion Enhance Yes

Auto Calibration Yes

Optional Probe needed Yes

Installation Mode Yes

Number of modes 8

Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect

Anamorphic Modes 4 Modes (A, B, C, D)

Control4 SDDP Yes

Power & Environment

Power Requirement AC100-240V, 50/60Hz

Projector in Use 440W

Standby Eco Mode 0.20W

Network Standby 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)

Switchover time Approx. 15 min. (To standby or networked standby; default)

Fan Noise 24 dB

Eco Mode Yes

Standby Timer Yes

Operating Temperature 5°C to 35°C

Operating Humidity 20% to 80%

Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree

Installation Height Below 2,000 m

In the box

Remote Control Yes, RM-MH27

Quick Guide Yes

Power Cord Yes

Batteries Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD) 500 x 234 x 528 (mm)

Product Weight 25.3 Kg

Package Dimensions (WxHxD) 640 x 415 x 665 (mm)

Package Weight 30.7 Kg

General Editing Note

General Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
